Understanding the Crucial Role of Cams in Circular Knitting Machines

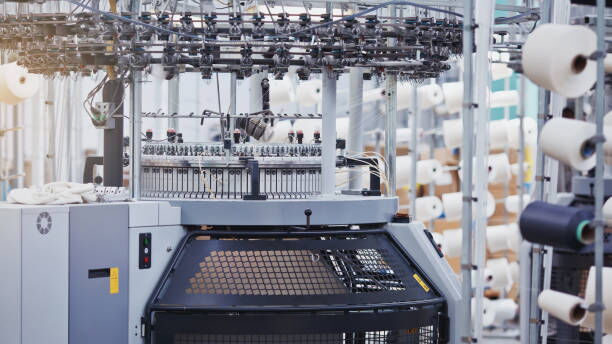

In the world of textile manufacturing, circular knitting machines stand as cornerstones of modern fabric production. At the heart of these complex machines lies a critical component—the cam. Though often overlooked by those outside the industry, the cam is essential to the successful and efficient operation of circular knitting machines. It governs the precise and synchronized movements of needles and sinkers, shaping the structure, texture, and quality of the final knitted fabric.

This article delves into the technical significance of cams in circular knitting machinery, examines the different types of cams used, and explores the key considerations involved in selecting the right cam for specific production needs.

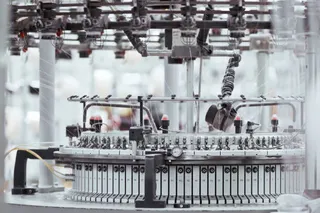

In a circular knitting machine, cams guide the motion of needles and sinkers through carefully designed paths, determining how yarn is manipulated into loops to form knitted fabrics. These movements occur at incredibly high speeds, especially in modern high-efficiency machines, making both the design and material of cams critical.

Cams are commonly categorized into four types:

Looping Cam: Responsible for forming loops by lifting and lowering the needles to interlace the yarns.

Tucking Cam: Allows the needle to hold a yarn without forming a loop, creating textured or decorative stitch patterns.

Floating Cam: Guides the needle without loop formation, allowing for patterned or missed stitches that contribute to complex fabric designs.

Sinking Cam: Controls the movement of sinkers, which assist in holding the fabric and help maintain consistent stitch formation.

Each cam type plays a distinct role, and together, they choreograph the dynamic interplay between needles and yarns that results in versatile fabric structures.

The performance of the cam directly affects not only the machine’s mechanical stability but also the quality, consistency, and appearance of the final fabric. Precision in cam design is essential for achieving uniform loop formation, reducing needle breakage, and minimizing machine downtime.

When cam performance is suboptimal—whether due to material failure, design flaws, or surface wear—the consequences are immediate and costly. Issues such as mislooping, needle crashes, uneven fabric texture, and reduced production speed can all be traced back to problems within the cam system.

Thus, selecting a high-quality cam tailored to the desired fabric style and machine specifications is a critical task for textile manufacturers aiming for productivity, quality assurance, and operational longevity.

To optimize both machine performance and fabric output, several technical aspects must be evaluated when selecting cams:

The trigonometric curve of a cam determines the precise timing and path of needle movement. This geometry must be closely matched to the intended fabric structure and stitch type.

Different knitting styles—such as single jersey, rib, interlock, and jacquard—require unique needle actions. As a result, the cam’s curve design must be customized to support those actions. Fabric designers, who often have specific structural goals in mind, may request unique cam profiles to achieve certain stretch, drape, or texture characteristics in the finished product.

An improperly matched cam curve can lead to issues such as irregular stitch formation, uneven tension, and poor fabric appearance. Conversely, a well-designed cam enhances both machine efficiency and product consistency.

Because cams endure continuous and rapid movement against hard metal needles or sinkers, the material composition of the cam is of utmost importance. The ideal cam material must offer excellent hardness, wear resistance, and dimensional stability.

ANSI D2 tool steel is one of the most widely used materials for cam manufacturing. This high-carbon, high-chromium cold work steel offers:

Good hardenability

High wear resistance

Low distortion during quenching

These properties make D2 an excellent candidate for cams that must withstand high loads and repeated contact without deformation or premature wear. The inclusion of molybdenum and vanadium in the alloy contributes to its toughness and edge retention.

In high-performance applications, especially where longer machine runtimes and reduced maintenance are priorities, using premium materials like D2 can significantly extend cam life and reduce downtime due to maintenance or replacements.

Material selection alone is not enough. The heat treatment process—particularly quenching and tempering—plays a crucial role in imparting the desired mechanical properties to cams.

Quenching is performed to harden the cam, allowing it to endure constant friction from needles and sinkers without losing form. However, excessive hardness can lead to brittleness, while insufficient hardness results in premature wear. Therefore, precise control over temperature and cooling rates during quenching is vital.

Tempering follows quenching to reduce brittleness while preserving hardness, enhancing toughness and resistance to impact. A well-executed heat treatment process ensures that the cam can withstand operational stress, maintain its surface integrity, and deliver reliable performance over extended periods.

Inadequate heat treatment can compromise not only the cam itself but also the overall health of the knitting machine, potentially causing serious mechanical failures.

Another critical factor is the surface roughness of the cam, which has a direct influence on machine performance, frictional behavior, and long-term wear characteristics.

To minimize wear on needles and reduce operational noise and friction, the surface finish of the cam must be as smooth as possible. In the industry, a surface roughness (Ra) value below 0.8 μm is often the benchmark for high-quality cams.

Achieving such precision requires advanced machining equipment, high-quality cutting tools, and meticulous attention to detail during the finishing process. Any deviation from the ideal roughness can lead to:

Increased friction between the cam and needle

Overheating of the cam seat

Accelerated wear and tear

Misalignment and skipped stitches

Frequent needle damage or needle collisions

By ensuring a smooth surface finish, manufacturers can greatly reduce the risk of mechanical issues and maintain stable production quality.

Even with the right cam design, material, and finish, long-term performance relies on proper maintenance and routine monitoring. Key maintenance practices include:

Regular lubrication to reduce friction and prevent overheating

Scheduled inspection for surface wear, cracks, or deformation

Timely replacement to avoid chain reactions that may affect needles, sinkers, or other components

Advanced circular knitting systems may also employ sensors and diagnostic tools to track cam performance in real-time, alerting operators when performance begins to degrade. This proactive approach minimizes unplanned downtime and keeps production running smoothly.

As textile manufacturers push for faster production speeds, finer gauge fabrics, and more complex patterns, cam technology is also evolving. Innovations in this space include:

Computer-aided design (CAD) for more accurate cam profiles tailored to specific fabric styles

CNC machining for high-precision manufacturing and reproducibility

Advanced coatings, such as titanium nitride (TiN), to improve hardness and reduce friction

Composite materials offering lighter weight and improved thermal stability

These advancements aim to increase durability, reduce energy consumption, and expand the range of fabric possibilities that circular knitting machines can achieve.

Incorporating new technologies into cam manufacturing not only helps maintain competitive edge but also ensures the equipment can meet the growing demands of fast fashion, sportswear, and technical textiles markets.

Though often hidden within the complex framework of circular knitting machines, cams are indispensable to fabric quality, machine efficiency, and operational stability. Their influence extends from the structural properties of fabrics to the economic efficiency of production lines.

To ensure optimal knitting machine performance, textile manufacturers must give due attention to the selection of cams—focusing on proper trigonometric curve design, high-performance materials, precise heat treatment, and refined surface roughness. Investing in quality cams is not merely a technical necessity; it's a strategic decision that can yield significant long-term benefits in product consistency, machine longevity, and overall production output.

As the textile industry continues to evolve, so too will the role and sophistication of cam technology—quietly guiding the needles behind every strand of yarn and every loop of fabric.
